Fig 11B
DESCRIPTION

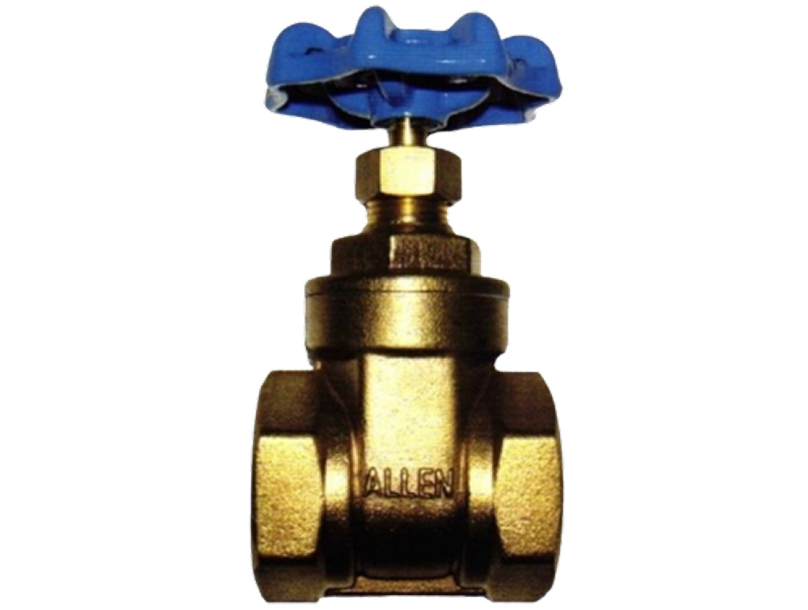

ALLEN gate valve is widely used in the building and general industry which include fire-fighting, plumbing and pneumatic system. This valve is suitable for both clean and hot water, non-corrosive liquid, cold and hot air.
DESIGN FEATURES
- Screw-In Bonnet
- Non-Rising Stem
- Single Wedge Disc
- “Non-Slip” Design Handwheel
- Nameplate is attached to identify the valve standard.
- ALLEN logo and indicating arrow for “open” and “close” position.
- Hexagon Head Gland in all sizes permits easy fitting with a wrench
- Valve Standard to BS EN 12288
- Pipe Threaded to BS EN 10226-1
