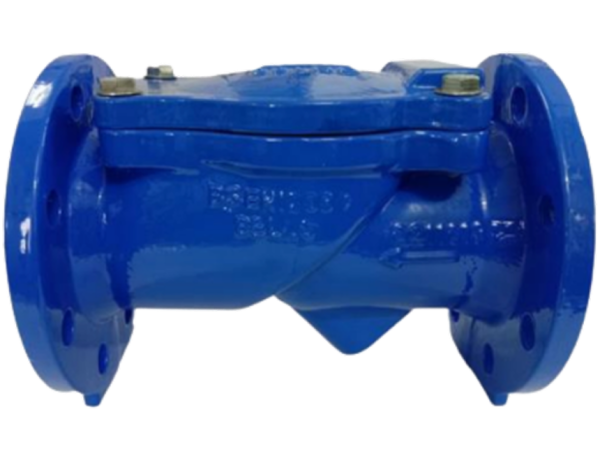

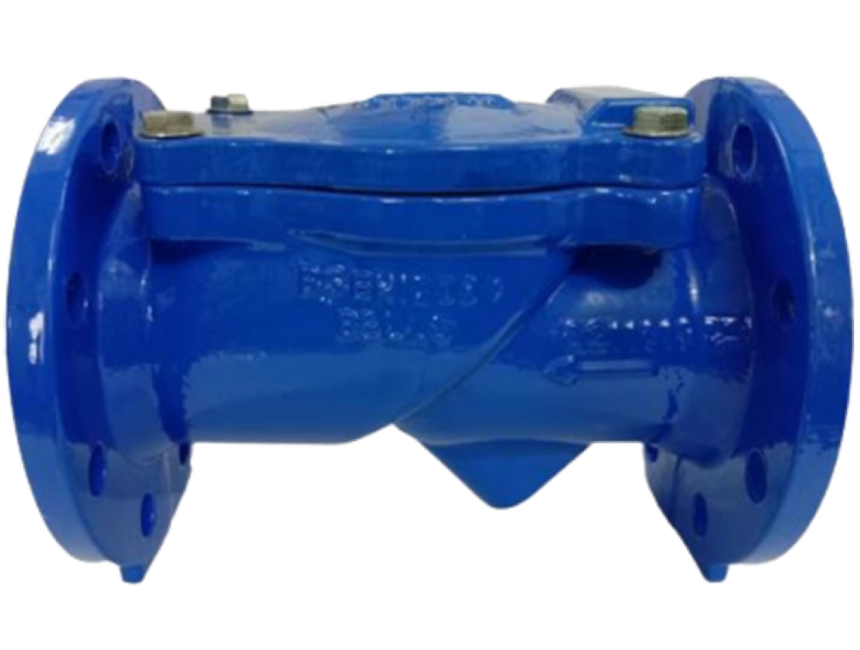

FIG 250
DESCRIPTION
Bells Non-Slam check valve is a variation of the swing check valve wherein the seat in angled at 45° angle and therefore needs to travel a short distance to achieve a fully close position. With this, the valve is capable of a quick shutoff, to prevents slamming. It is suitable for horizontol or vertical installation and provides convienient access to the disc for inspection or replacement without disturbing the piping system.
APPLICATION
This valve can widely be used in water and waste-water system. Please refer to Bells for hot water system application.
DESIGN FEATURES:
- DESIGNED & MANUFACTURED AS PER BS EN 16767
- FLANGES DRILLED TO EN 1902-2 (PN 16)
- EMBOSSED WITH SIZE, PRESSURE RATING AND LOGO FOR A BETTER FUTURE REFERENCE
- FLANGE TYPE JIS 1OK BS10 TABLE D/E ANSI B16.1 CLASS 125 (other connection is available upon request)
