Butterfly Valve

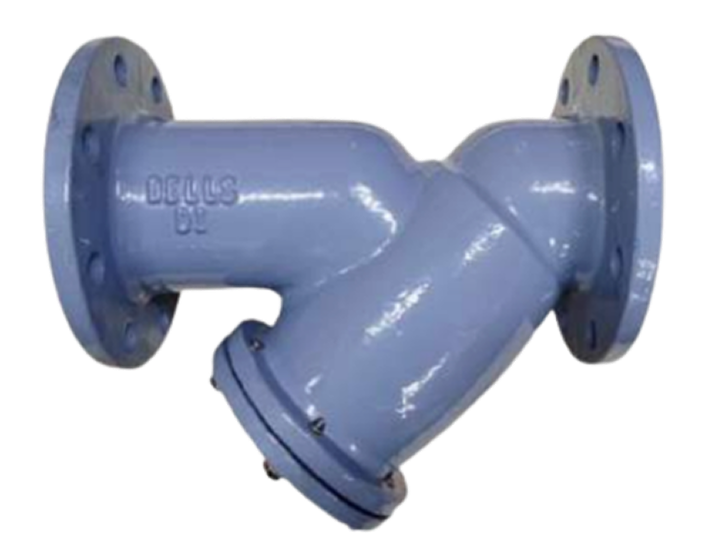

BELLS strainer allows the removal of solids from flowing liquids by means of a wire mesh-straining element. It has a strong construction screen with an extra large area within the body allowing free flow of fluid with minimal head loss. This product is highly recommended to be installed on the inlet of the pipeline to protect pump, valve and measuring equipment from damage. The valve can be installed in vertical and horizontal position and widely used in the construction and process industry.

“Y” PATTERN BODY FLANGED END CAP WITH DRAIN PLUG STAINLESS STEEL 304 PERFORATED SCREEN EMBOSSED WITH SIZE, PRESSURE RATING AND BATCH NO. FOR A BETTER FUTURE REFERENCE CONNECTION END AS PER BS10 TABLE “E” & PN 16 CONNECTION SUCH AS EN 1092-2 PN 25 ANSI B16.1, CLASS 125, JIS 10K ARE AVAILABLE UPON REQUEST
